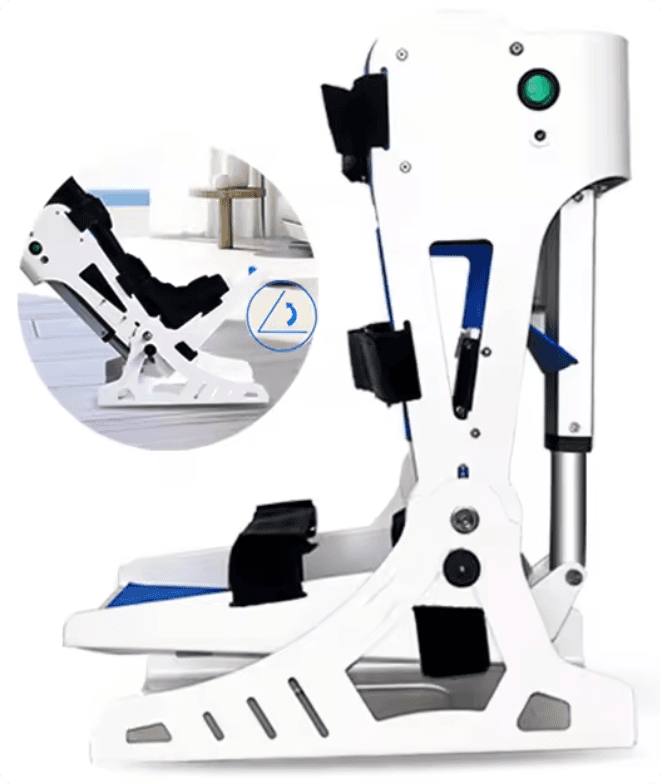

ARR-05 automatic ankle joint trainer
ARR-05 automatic ankle joint trainer
0-45 deg
Motion range
9 + 9
Control grades
12V DC
Low voltage
Automatic ankle movement support

High-Performance Automatic Ankle Joint Trainer for Rehabilitation

ARR-05 is designed to guide plantar flexion and dorsiflexion movement through a 0-45 deg range. Remote control, 9-grade speed and intensity settings, and manual bend/stretch modes make each session easier to set up and adjust.

Guided ankle plantar flexion and dorsiflexion movement
9 speed grades and 9 intensity grades for flexible routines
Remote control operation for sitting or lying training posture
Get Product DetailsSend Inquiry
Product features

Designed for controlled ankle movement, simple setup and flexible sessions

For users who need repeated ankle motion support, ARR-05 combines motorized movement, adjustable grades and secure positioning in one compact device.

Guided 0-45 deg ankle motion

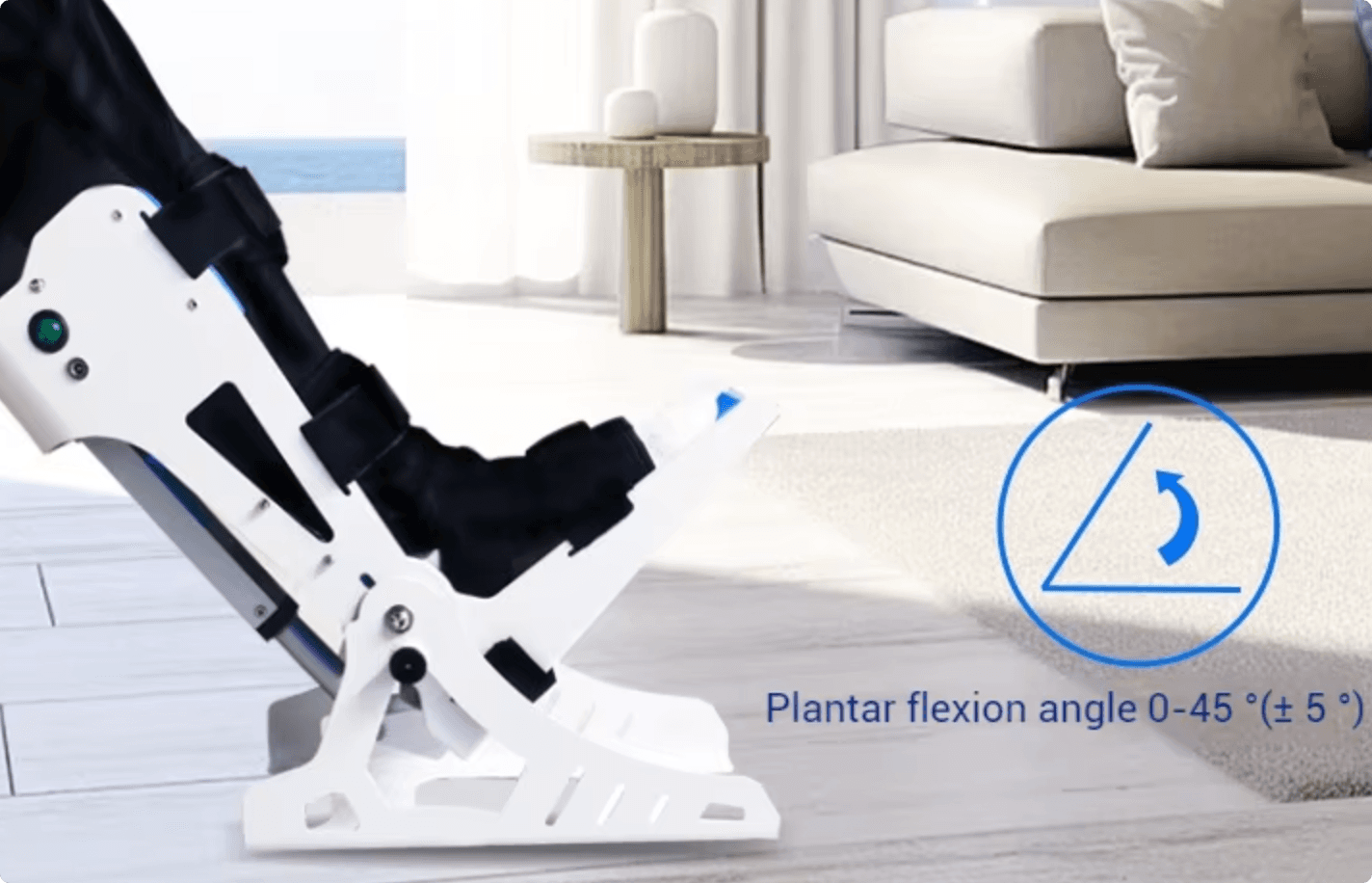

Plantar flexion angle 0-45 degree demonstration

The trainer moves the foot through plantar flexion and dorsiflexion within a 0-45 deg range, supporting repeated ankle movement routines with clear angle limits.

9-grade speed and intensity control

9-grade speed and intensity control panel

Adjust speed and training intensity across 9 grades to match different comfort levels, session goals and assisted movement preferences.

HOW TO USE

Watch the ankle trainer movement, remote operation and setup details in a short product video.

Ask us for the full product specification, price and availability after watching.

Get Product Details

Stable straps and posture setup

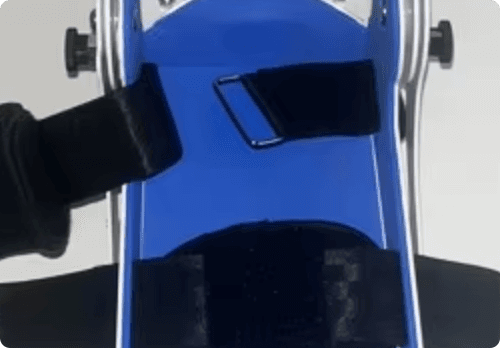

Stable straps and posture setup

Leg straps, foot straps and the scale division sheath help position the limb securely for sitting or lying use before the movement starts.

Automatic and manual modes

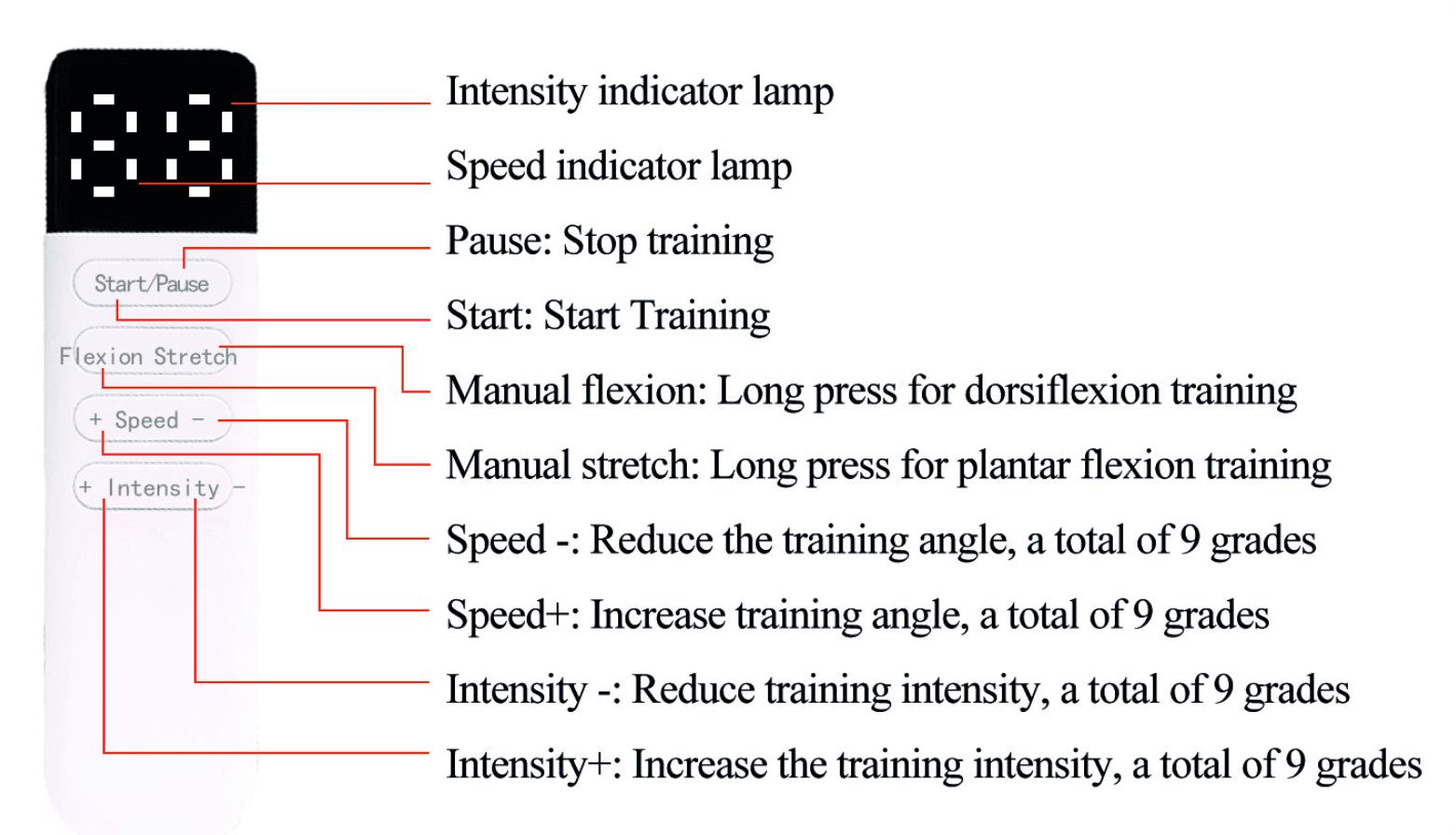

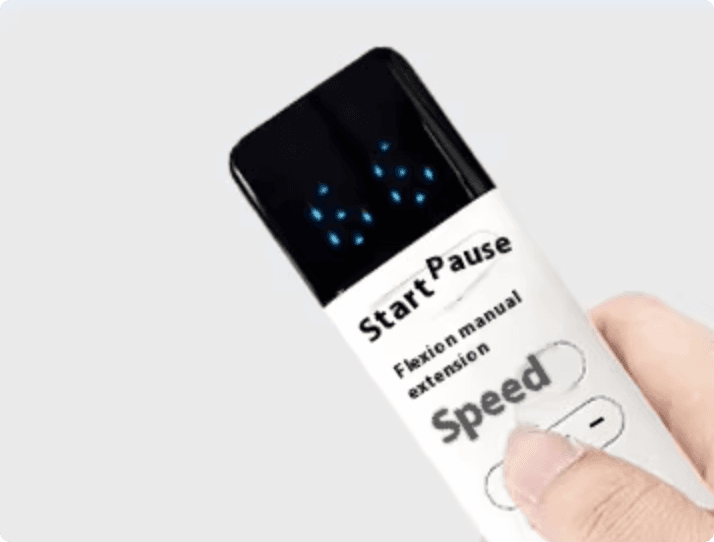

Remote control for automatic and manual modes

Use Start/Pause for automatic passive movement, or long press Manual Bend / Manual Stretch for direct control when a focused bend or stretch is needed.

Specifications and parameters

Main Parameters

Confirm the motion range, adjustment levels, working voltage, dimensions and weight, then request the latest quotation, photos and product documents.

Ask for the specification PDF

Submit your intended use and quantity to receive product details, photos, operation guidance, pricing and lead time.

Get Product Details
Model
ARR-05 Ankle Joint Trainer
Angle range
Plantar flexion: 0-45 deg | Dorsiflexion: 0-45 deg (+/-5 deg)
Adjustment
9 grades speed / 9 grades intensity
Modes
Passive training and manual control for bend/stretch
Working voltage
Safe low-voltage 12V DC
Dimensions / weight
30 x 15 x 40 cm / 6200 g
How it works

Start a session in four simple steps

1
Straps

Secure

Adjust the training posture, then secure the leg and foot straps.

2
Power

Power On

Turn on the main power switch and keep the connector dry.

3
Start

Run

Press "Start" on the remote to initiate automated plantar/dorsiflexion movement.

4
Manual

Customize

Fine-tune speed, intensity, or switch to Manual Bend / Manual Stretch.

ARR-05 automatic ankle joint trainer setup and operation steps
